Axiom DAC
Beyond Digital. Beyond Imagination.
Decades of Expertise and Precision Engineering.
The Axiom is the embodiment of Ideon Audio’s accumulated knowledge in digital design, power architecture, precision engineering and signal integrity. Every element of the system has been developed with obsessive attention to detail, from conversion architecture to power supply topology and signal synchronization. This convergence of advanced engineering and musical philosophy results in a DAC that pushes the boundaries of what digital reproduction can achieve. Conceived as a digital-to-analog converter that disappears entirely from the listening chain, Axiom allows only the living presence of music to remain. Its design philosophy places musical realism above all else, organic flow, tonal authenticity, spatial coherence, and emotional engagement rather than a mere pursuit of specifications.
The Engine: Extreme-Performance Parallel DAC Architecture
At the heart of the Axiom lies an extreme-performance parallel DAC architecture built around a sophisticated 16-channel hybrid conversion engine operating in a fully differential configuration. This design combines multiple conversion technologies with proprietary firmware developed in-house by Ideon Audio, enabling complete optimization of the digital-to-analog conversion process.
The architecture achieves ultra-low noise and distortion while delivering reference-grade digital conversion with exceptional dynamic range, extremely low jitter, and remarkable linearity. By distributing the conversion process across multiple channels in a precisely controlled parallel topology, the system dramatically improves signal stability and reduces distortion at every stage – redefining the limits of conventional DAC design.
The Grid: Monumental 2kW Power Supply Engine
The system incorporates extreme capacity 2KW power supplies with massive energy reserves and exceptionally low impedance, designed to deliver instantaneous current with absolute stability.
The extremely low-impedance power supply architecture allows current to be delivered instantly and without any compression even during the most demanding musical passages.
This extraordinary power infrastructure allows the Axiom to reproduce music with extraordinary detail, speed, and naturalness, resulting in a truly effortless musical reproduction with expansive 3-D imaging, lightning-fast transient response, and exceptional dynamic range. The power supply architecture also incorporates meticulous purification and stabilization of the incoming mains voltage, creating a pristine electrical foundation for the entire system.
The Chrono: Holistic Signal Governance.
Isolation & Re-Clocking. Signal integrity within the Axiom is governed by Ideon’s advanced reclocking and isolation technologies. The system integrates the company’s proprietary end-to-end architecture for USB audio transmission – USBCore™ and ChronoCore™ platforms, which perform multi-stage buffering, reclocking, and isolation of the incoming digital signal. These systems regenerate and re-time the signal with extreme precision, eliminating timing errors and jitter.
A separate, oversized, dedicated power supply feeds the reclocking system, ensuring absolute stability during signal regeneration and further enhancing overall performance.
The Quantum Sync Interface™
This is a proprietary Precision Link between signal governance and the conversion engine, developed by Ideon Audio.
Only once the signal has been fully stabilized and synchronized is it transferred to the DAC conversion engine through the Quantum Sync Interface™.
This interface is a dedicated high-integrity signal link, consisting of a precision-engineered cable, a reference-grade LEMO connector, in a controlled transmission technique. This way, the Axiom allows the conversion stage to operate in an ultra-clean and perfectly synchronized environment.
Each discrete audio sample – the quantum of digital audio – is aligned with extreme temporal precision before conversion.
The Quantum Sync Interface™ is therefore the precision conduit that carries these perfectly timed signal quanta into the DAC engine.
Unique Analog Output Principle
At the heart of the Axiom lies a meticulously engineered analog output stage, built upon Ideon Audio’s proprietary single-stage topology. Designed and developed entirely in-house, this architecture eliminates unnecessary complexity, preserving the purity, immediacy, and natural flow of the musical signal.
The fully balanced design employs four discrete analog output channels, operating without capacitors in the signal path, ensuring absolute transparency and uncompromised signal integrity. Each critical section is supported by dedicated, ultra-stabilized power supplies, delivering an exceptionally low noise floor and vanishingly low distortion.
Beyond precision, this stage is defined by its authority. With unusually high current capability and remarkable output strength, the Axiom is able to drive virtually any load with effortless control. The result is a presentation of music with striking dynamics, limitless headroom, and an extraordinary level of detail, where energy, scale, and nuance are conveyed with complete realism.
Musical Flow vs. Technical Spectacle
The Axiom DAC has been created with a singular objective: to reproduce music as it exists in nature. Every design decision has been guided by the pursuit of musical authenticity rather than technical spectacle. The goal is not merely to impress with specs, but to allow music to breathe, preserving its emotional impact and expressive nuance. The result is a listening experience that transcends conventional notions of high-end audio, allowing the listener to connect directly with the performance itself.
Exclusivity & Heritage
Each Axiom DAC is hand-built in Greece with obsessive attention to detail and craftsmanship. Production is strictly limited, reflecting Ideon Audio’s commitment to uncompromising quality and exclusivity. The Axiom stands as the ultimate expression of Ideon Audio’s philosophy: that digital audio, when perfected, should disappear completely, leaving only the music.
Ideon Director Application
Control and system integration are managed through Ideon Audio’s newly developed Director application. Designed specifically for the Axiom platform, the Director app provides full remote control and operation of the DAC while serving as the central control hub for future Ideon Audio products.
The interface allows seamless access to system settings, filter selection, and operational functions, offering a refined user experience that complements the engineering sophistication of the hardware.
| SUPPORTED FORMATS (INPUT DEPENDENT) | 44.1kHz to 384kHz PCM up to 32 bits - Native DSD (up to 8X DSD) |
| DIGITAL INPUTS | 3X Quantum Sync isolated inputs (USB, XLR, RCA) & 3X Inputs (optical, RCA, XLR) |
| XLR BALANCED OUTPUTS (high/mid/low/variable selectable by the user) | 9Vrms at 0dB (at high output) |
| RCA OUTPUTS (adjustable as with XLR) | 4.5Vrms at 0dB (at high output) |
| THD (A WEIGHTED 20HZ-20KHZ) | < – 120dB on all outputs |
| CHANNEL SEPARATION | >130dB on all outputs |
| SNR (A WEIGHTED 20HZ-20KHZ) | >138dB on all outputs |
| DYNAMIC RANGE | 20HZ TO 20KHZ 147 dB (FS) . 145 dB (AFS) |
| DISPLAY | 7 inch |

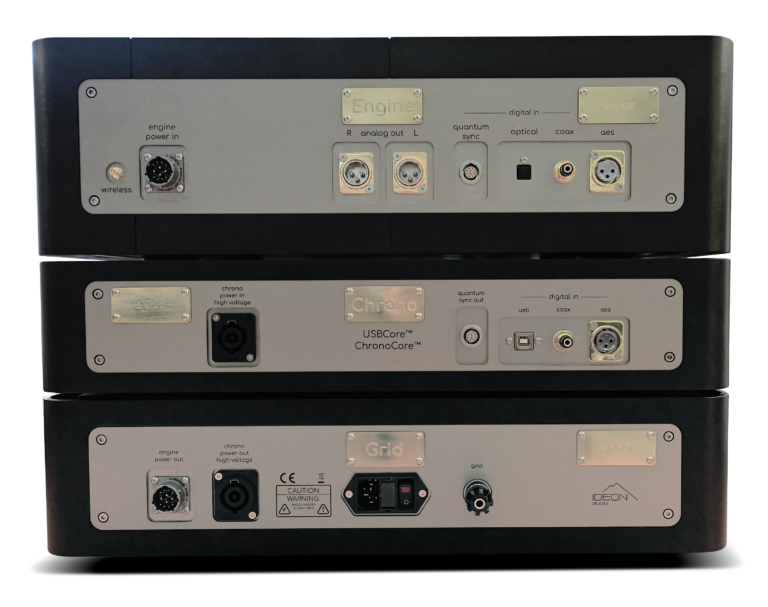

| DIMENSIONS (W X D X H) - 3 Units (Engine, Chrono, Grid) | Engine: 540 x 400 x 160 mm (21.3 x 15.8 x 6.3 in). Chrono: 540 x 400 x 90 mm (21.3 x 15.8 x 3.6 in). Grid: 540 x 400 x 90 mm (21.3 x 15.8 x 4.8 in). |
| TOTAL WEIGHT | 132kg (~291 lbs) |
